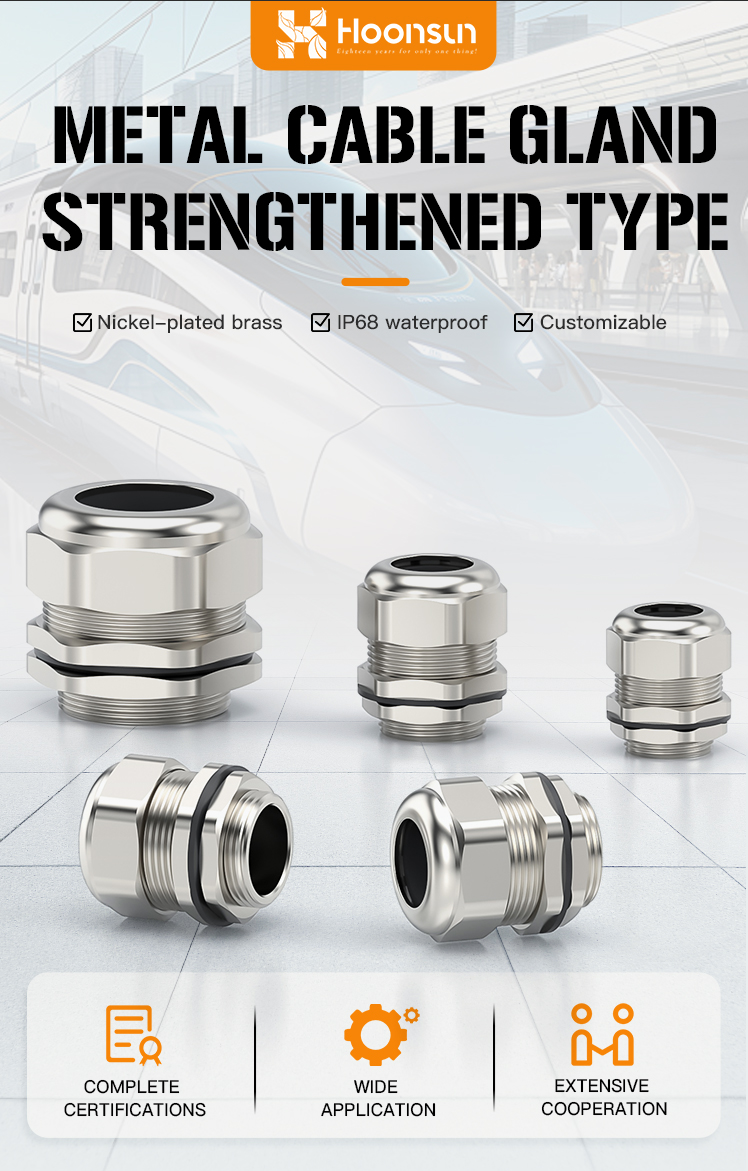

The Metal Cable Gland Strengthened Type, which is certified by UL and IP68, can ensure stable and reliable connections in harsh industrial and outdoor environments.
Certified for Global Markets：
Comprehensive Structural Reinforcement: Both the main body and clamping components adopt thickened, high-strength materials, significantly improving overall mechanical performance and enabling resistance to greater external impact.
Upgraded Protection Level: Optimized sealing structure with an IP68+ protection rating, enhancing dustproof, waterproof, oilproof, and corrosion-resistant capabilities for harsh working conditions.

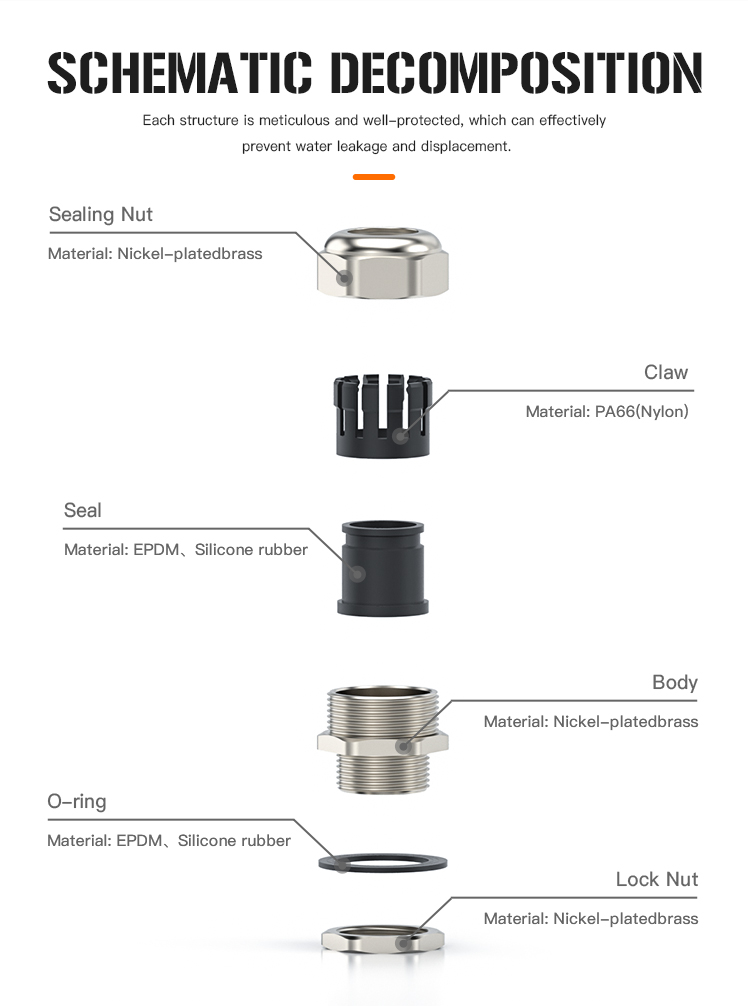

Extremely Secure Connection: Upgraded dual clamping design, featuring excellent tensile, anti-vibration, and anti-torque performance to effectively prevent cable loosening and ensure long-term stable use.
Wide Application Compatibility: Compatible with various cable specifications and thread standards (PG, NPT, and Metric threads), easy to install, and widely used in high-intensity scenarios.
Heavy machinery, power distribution systems, and automation equipment
Outdoor installations exposed to extreme conditions
Rail systems, marine environments, and industrial control panels
Mining, shipping, and outdoor engineering applications

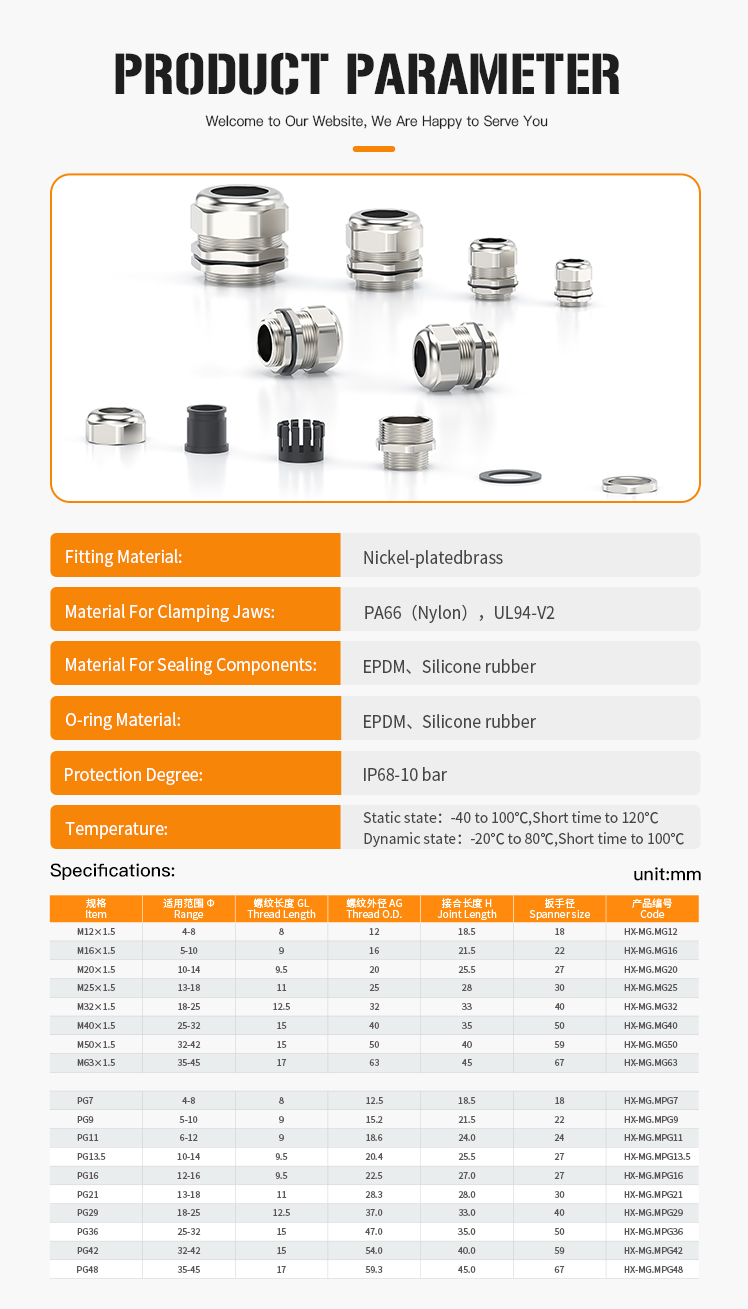

| Item | Range | GL Thread Length | AG Thread O.D. | H Joint Length | Spanner size | Code |
|---|---|---|---|---|---|---|
| M12x1.5 | 4-8 | 8 | 12 | 18.5 | 18 | HX-MG.MG12 |
| M16x1.5 | 5-10 | 9 | 16 | 21.5 | 22 | HX-MG.MG16 |
| M20x1.5 | 10-14 | 9.5 | 20 | 25.5 | 27 | HX-MG.MG20 |
| M25x1.5 | 13-18 | 11 | 25 | 28 | 30 | HX-MG.MG25 |
| M32x1.5 | 18-25 | 12.5 | 32 | 33 | 40 | HX-MG.MG32 |
| PG7 | 4-8 | 8 | 12.5 | 18.5 | 18 | HX-MG.MPG7 |
| PG9 | 5-10 | 9 | 15.2 | 21.5 | 22 | HX-MG.MPG9 |
