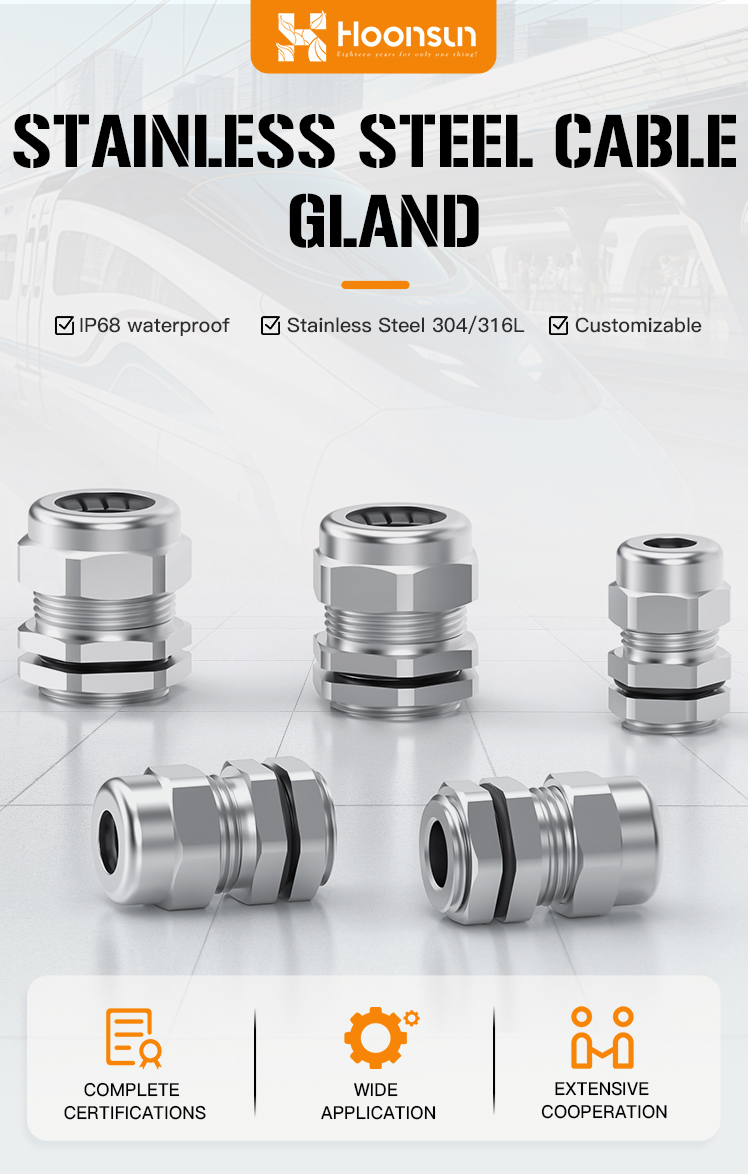

Durable stainless steel cable gland offering corrosion resistance, waterproof sealing, and long service life.
Certified for Global Markets：

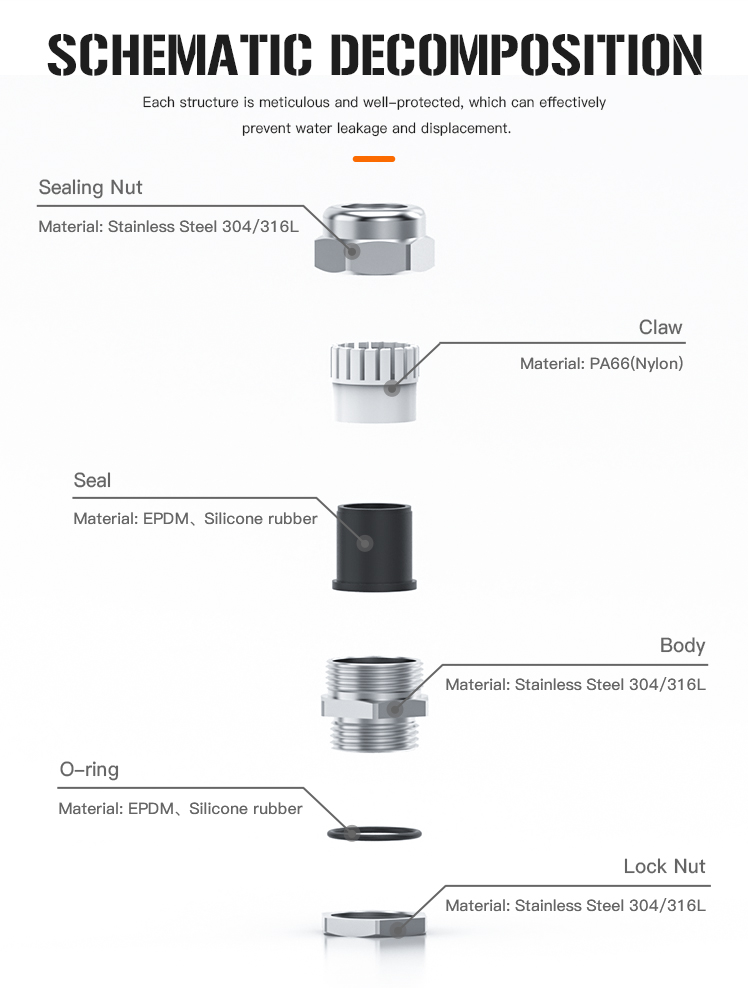

Made of 304 or 316 stainless steel, ensuring excellent resistance to moisture, salt, and chemicals — perfect for marine, chemical, and outdoor environments.
High mechanical strength prevents cable loosening under vibration or pressure, providing long-lasting stability.
Fully sealed against water, dust, and oil, ideal for electrical panels, junction boxes, and outdoor installations.
Performs reliably between -40°C and +120°C, suitable for extreme environments.
Available in PG, NPT, and Metric threads, with rubber or silicone seals for secure, simple installation.
Corrosion-resistant material ensures minimal maintenance and long service life.

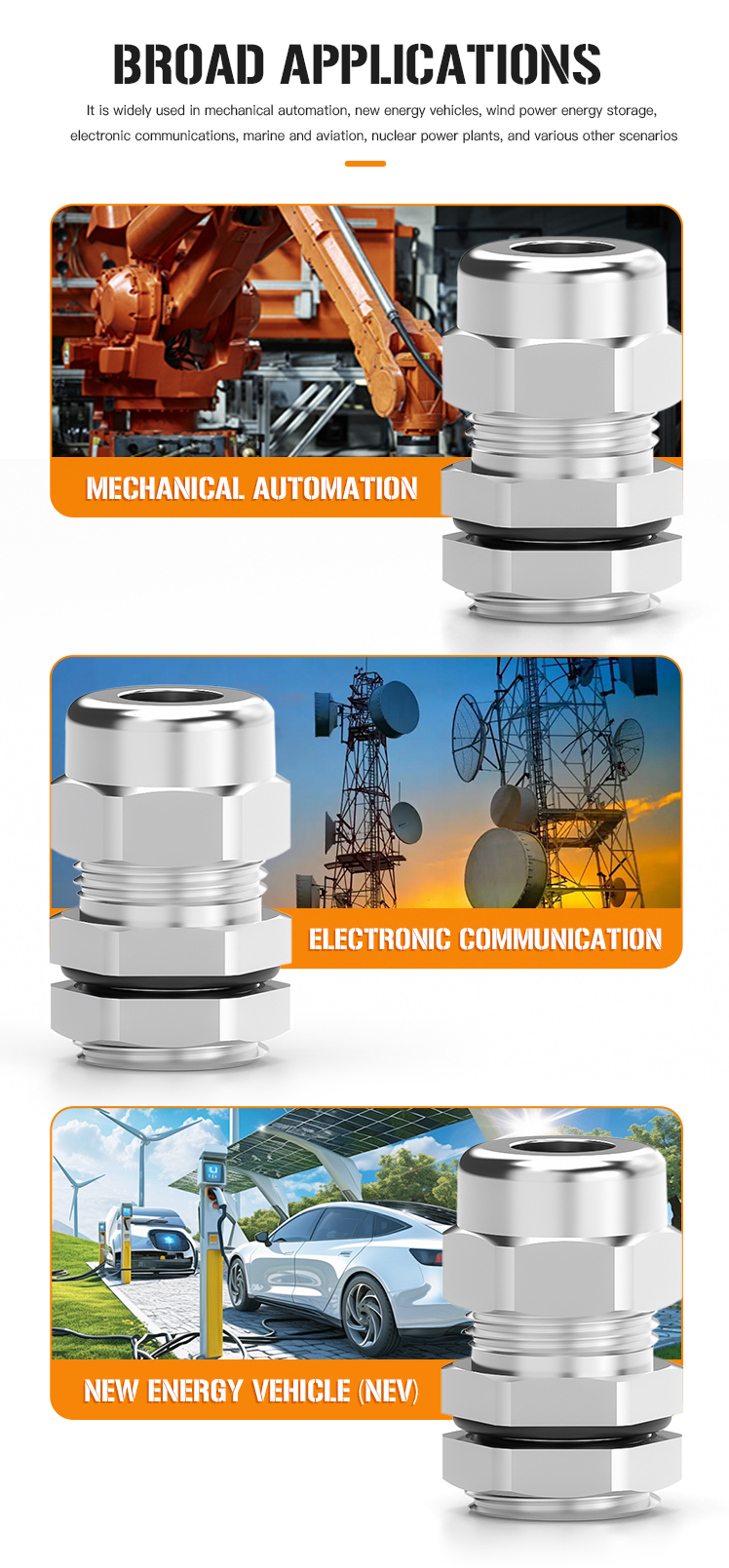

Power Systems - Ensures safe and reliable connections in electrical distribution and control equipment.
Marine & Offshore - Withstands harsh saltwater conditions to protect vital shipboard and offshore rig wiring.
Petrochemical Plants - Resists corrosive chemicals and gases, ensuring safety in hazardous environments.
Industrial Automation - Protects sensitive sensor and controller connections from dust, moisture, and oil.
Communication Cabinets - Maintains the integrity of signal transmission for telecommunication infrastructure.
Renewable Energy - Superior protection for wiring in solar panel installations and wind turbine systems.

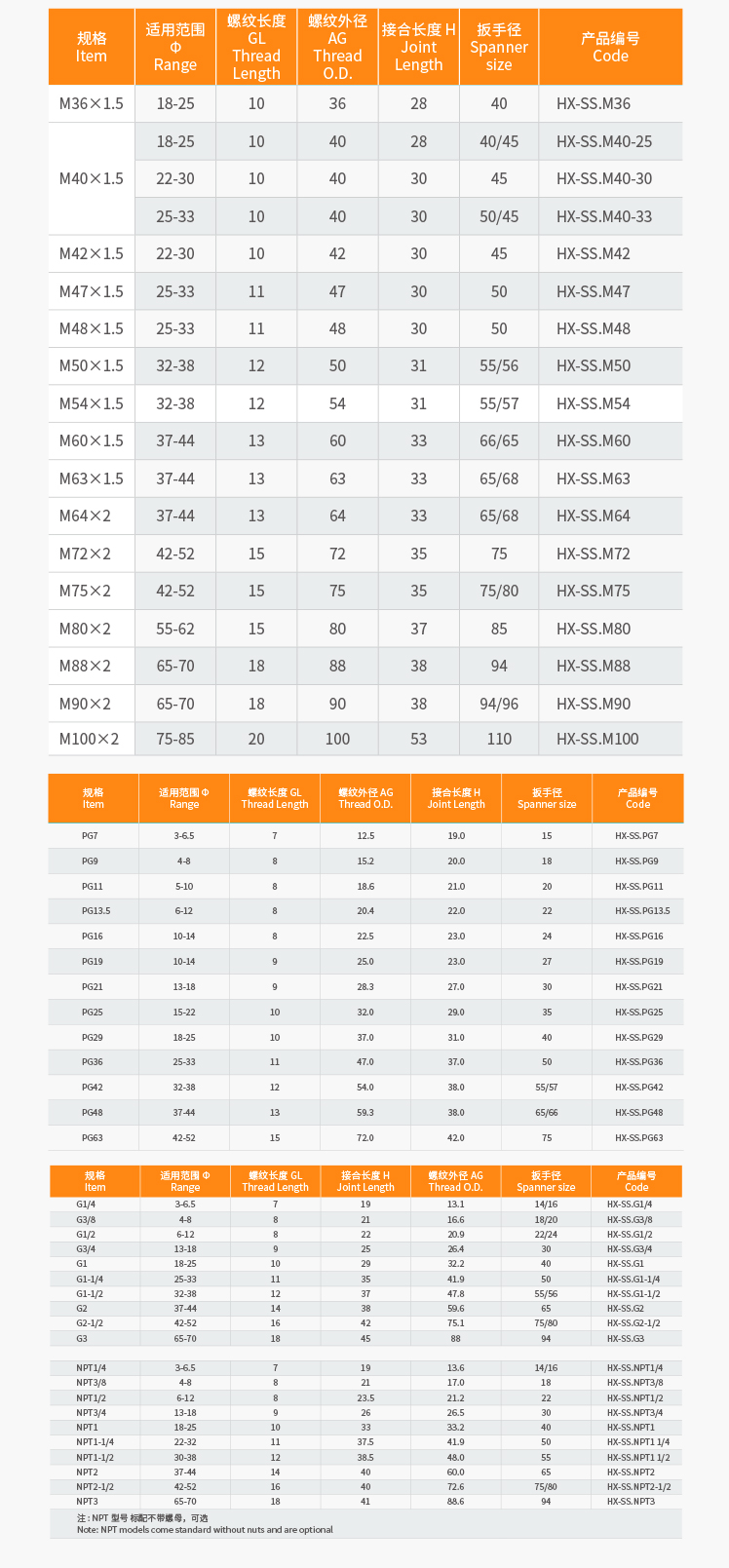

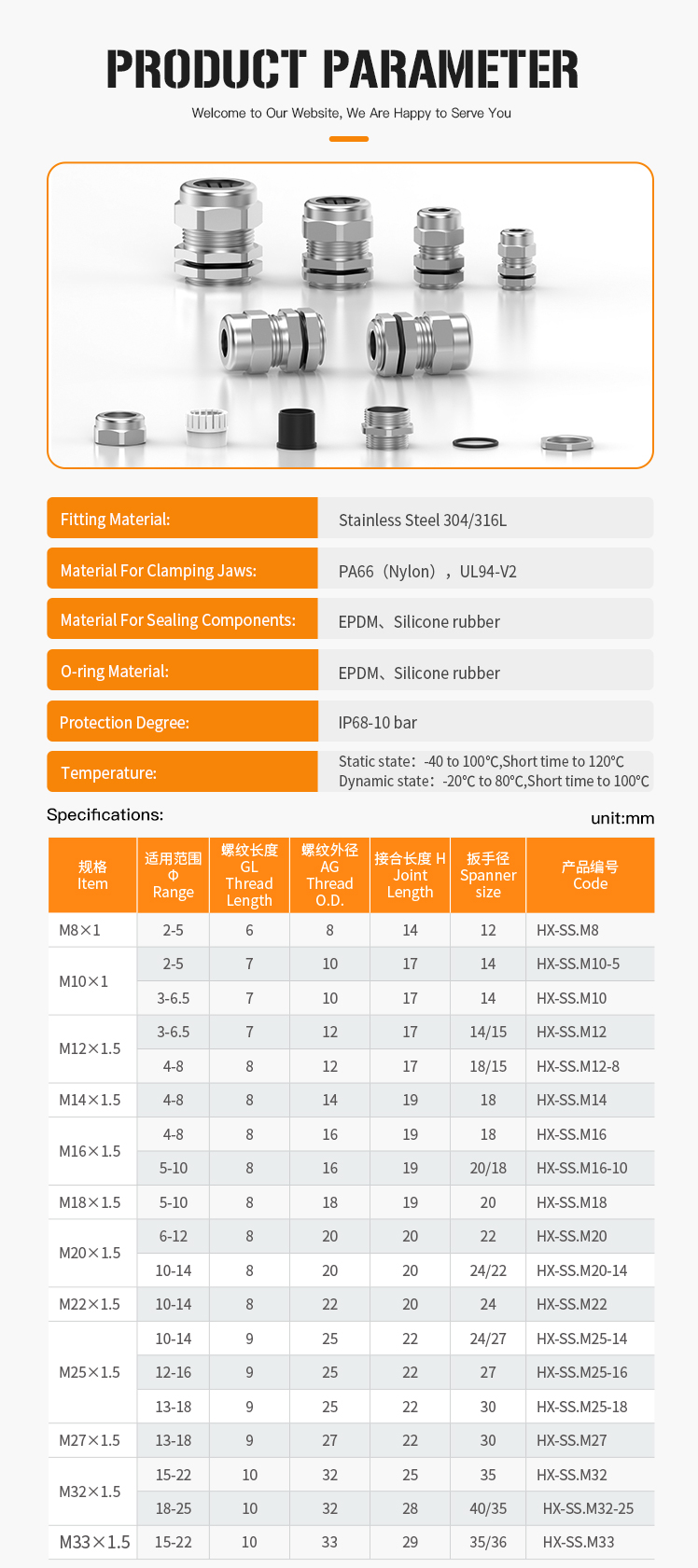

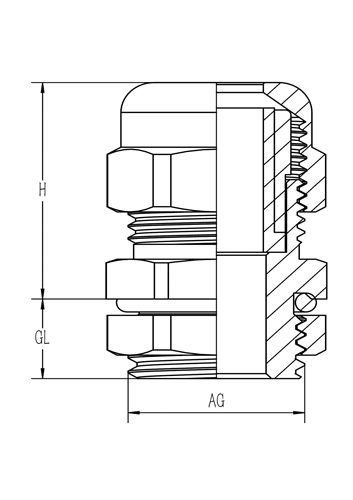

| Item | Range | GL Thread Length | AG Thread 0.D. | H Joint Length | Spanner size | Code |
| M8×1 | 2-5 | 6 | 8 | 14 | 12 | HX-SS.M8 |
| M10×1 | 2-5 | 7 | 10 | 17 | 14 | HX-SS.M10-5 |
| M12×1.5 | 3-6.5 | 7 | 12 | 17 | 14/15 | HX-SS.M12 |
| M16×1.5 | 5-10 | 8 | 16 | 19 | 20/18 | HX-SS.M16-10 |
| M20×1.5 | 6-12 | 8 | 20 | 20 | 22 | HX-SS.M20 |
| M25×1.5 | 13-18 | 9 | 25 | 22 | 30 | HX-SS.M25-18 |
| M32×1.5 | 18-25 | 10 | 32 | 28 | 40/35 | HX-SS.M32-25 |
| Item (PG) | Range | GL Length | AG O.D. | H Length | Spanner | Code |
| PG7 | 3-6.5 | 7 | 12.5 | 19.0 | 15 | HX-SS.PG7 |
| PG9 | 4-8 | 8 | 15.2 | 20.0 | 18 | HX-SS.PG9 |
| PG11 | 5-10 | 8 | 18.6 | 21.0 | 20 | HX-SS.PG11 |
| PG16 | 10-14 | 8 | 22.5 | 23.0 | 24 | HX-SS.PG16 |
| PG21 | 13-18 | 9 | 28.3 | 27.0 | 30 | HX-SS.PG21 |
| PG29 | 18-25 | 10 | 37.0 | 31.0 | 40 | HX-SS.PG29 |
They are primarily manufactured from high-quality 304 or 316 stainless steel to ensure maximum corrosion resistance and durability in harsh environments.

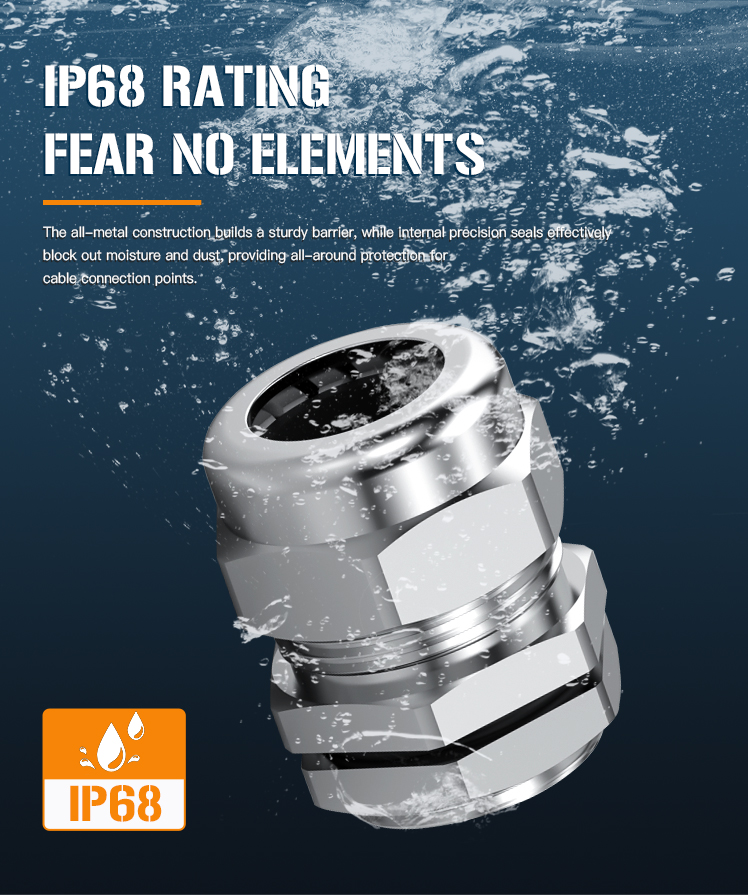

IP68 is a standard that indicates the cable gland is completely dust-tight and can withstand long-term immersion in water under pressure, providing a reliable waterproof seal.
We offer a full range of thread standards, including Metric (M), PG, NPT, and G (Gas) threads to fit various international equipment requirements.
Yes, these stainless steel cable glands are designed to perform reliably in a wide temperature range from -40°C up to +120°C.
Yes, ROHS-certified and explosion-proof versions are available for applications in hazardous or explosive environments like petrochemical plants.
Standard NPT models typically come without nuts as they are often threaded directly into equipment, but locknuts are available as an optional accessory.
